Exosphere Telescoping Jib Arm

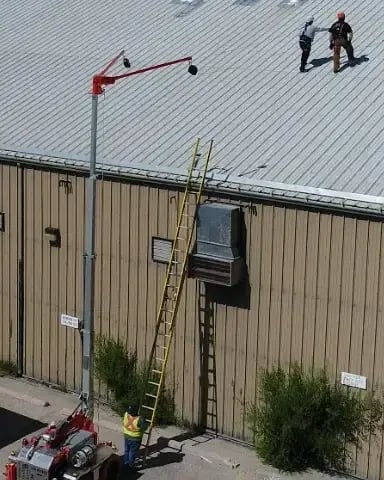

The Exosphere Telescoping Jib Arm represents the most advanced mobile fall arrest system in the Tuff Built by Diversified line-up. Designed to place portable, overhead fall protection anchor points where you need them, the Exosphere comes with variety of anchor packages, mast combinations, cube bases, lifting devices, and transport packages to give our customers a perfect mobile fall arrest solution that fits their specific needs. OSHA compliant and designed for long service life, the Exosphere can provide secure, mobile anchor points at heights ranging from 14′ to 38′. Whether you need a push-pull system, a self-propelled model, or a unit with a highway trailer package, we can customize a mobile telescoping jib arm system to meet your fall protection needs and your budget.
Explore your roof anchor point options or contact the experienced team at Diversified Fall Protection to configure your system today.
Stock Design Consideration Configurations
We are a complete turnkey provider of OSHA compliant portable fall arrest systems and have years of design and installation experience. Contact us for expert assistance with your fall arrest, fall restraint and fall protection safety requirements.
Please Note: The tables below shows standard stock sizes/configurations, but if your application requires modifications to an existing design, contact us to discuss your specific needs.
| *Exosphere Anchor System Packages | ||
| Part # | Max Anchor Height | Description |
| 71443 | 28' | Exosphere Anchor System, 12V, forklift base, foldable (24') |
| 70797 | 42' | Exosphere Anchor System, 12V, forklift base, foldable (38') |
| 70994 | 28' | Exosphere Anchor System, 12V, indoor push/pull, foldable (24') |
| 70939 | 42' | Exosphere Anchor System, 12V, indoor push/pull, foldable (38') |
| 71444 | 28' | Exosphere Anchor System, 12V, outdoor push/pull, foldable (24') |
| 70705 | 42' | Exosphere Anchor System, 12V, outdoor push/pull, foldable (38') |
| *Custom Anchor Options Available Upon Request | ||
| Simplicity Exosphere Anchor System | |||
| Part # | Max Anchor Height | Weight | Description |
| 7212 | 26' | 8000 lbs (3636 kgs) | Simplicity, Exosphere Anchor System (24') with forklift base |
| 71304 | 26' | 4500 lbs (2041 kgs) | Simplicity, Exosphere Anchor System (24') with forklift base, 1/3 cube |
| 70999 | 26' | 5600 lbs (2545 kgs) | Simplicity, Exosphere Anchor System (24') with on-site towable trailer |
Build Your Own - Exosphere Anchor Systems |
|
| Anchor Arms | |
| Part # | Description |
| 70693 | 10" Triple 360° rotation anchors |
| 70747 | 48" Double 360°/180° rotation arms |
| 70917 | 72" Double 360°/180° rotation arms |
| 71291 | 72" Foldable Double 360°/180° rotation arms |
| Masts | |
| Part # | Description |
| 70613 | Hydraulic 24' four stage |
| 70614 | Hydraulic 30' four stage |
| 70615 | Hydraulic 38' four stage |
| 70976 | Winch Operated 24' four stage |
| Mounting Brackets | |
| Part # | Description |
| 70697 | Permanent Vertical (used with 70700, 70973, & 70701) |
| 70699 | Foldable Hydraulic |
| Cubes | |
| Part # | Description |
| 70694 | 3,350 lbs, Cube with concrete (used for 24' masts ONLY) |
| 70995 | 4,790 lbs, Cube with concrete |
| 70696 | 6,740 lbs, Cube with concrete |
| Lifting Power Devices | |
| Part # | Description |
| 70700 | Winch (24' mast ONLY) |
| 70701 | Manual Hydraulic for vertical lift only (all bases) |
| 70969 | Manual Hydraulic for vertical and foldable lift (all bases) |
| 70972 | 12V Hydraulic for vertical and foldable lift (all bases) |
| 70973 | 12V Hydraulic for vertical only (all bases) |
| Stabilized Transport Bases | |
| Part # | Description |
| 70497 | Transport base for soft terrain (outdoor push/pull) |
| 70661 | Transport base for finished floor (indoor push/pull) |
| 70532 | Stabilizer for concrete (for soft terrain use add-on 71540) |
| Factory option build add-ons | |
| Part # | Description |
| 70895 | Solar Panel Kit (12V only) |
| 70881 | Leveling Kit for Vertical (30/38; only) |
| 70516 | Leveling kit for Foldable |
| 70690 | Leveling kit for Vertical (18'/24' only) |
| 71210 | Rescue Bracket (Up to 2 users - devices & device brackets not included) |
| Add-ons | |
| 71540 | Soft Surface Base Plates |
| 70988 | Anchor Point Adjustable (vertical only) |
| *Exosphere Highway Trailer Fall Protection Anchor System | |||
| Part # | Max Anchor Height | Anchor Points | Description |
| 70724 | 28' | 2 | Exosphere Anchor System, Highway Trailer (24') |
| 70726 | 42' | 2-4 | Exosphere Anchor System, Highway Trailer (38') |
| *Other heights available upon request | |||
| *Exosphere All-Terrain Fall Protection Anchor System | ||||
| Part # | Max Anchor Height | Anchor Points | Description | |
| Gasoline Fueled | 70929 | 28' | 2 | Exosphere Anchor System, 4x4 All Terrain Gasoline (24') |
| 70764 | 42' | 2-4 | Exosphere Anchor System, 4x4 All Terrain Gasoline (38') | |
| Propane Fueled | 70936 | 28' | 2 | Exosphere Anchor System, 4x4 All Terrain Propane (24') |
| 70924 | 42' | 2-4 | Exosphere Anchor System, 4x4 All Terrain Propane (38') | |
| *Other heights available upon request | ||||
OSHA Regulations
Personal Fall Arrest Systems: System performance criteria. In addition to the general requirements in paragraph (c) of this section, the employer must ensure that personal fall arrest systems: 1910.140(d)(1)(i)
- Limit the maximum arresting force on the employee to 1,800 pounds (8 kN); 1910.140(d)(1)(ii)
- Bring the employee to a complete stop and limit the maximum deceleration distance the employee travels to 3.5 feet (1.1 m); 1910.140(d)(1)(iii)
- Have sufficient strength to withstand twice the potential impact energy of the employee free falling a distance of 6 feet (1.8 m), or the free fall distance permitted by the system; and... 1910.140(d)(1)(iv)
- Sustain the employee within the system/strap configuration without making contact with the employee's neck and chin area. 1910.140(d)(1)(v)
If the personal fall arrest system meets the criteria and protocols in appendix D of this subpart, and is being used by an employee having a combined body and tool weight of less than 310 pounds (140 kg), the system is considered to be in compliance with the provisions of paragraphs (d)(1)(i) through (iii) of this section. If the system is used by an employee having a combined body and tool weight of 310 pounds (140kg) or more and the employer has appropriately modified the criteria and protocols in appendix D, then the system will be deemed to be in compliance with the requirements of paragraphs (d)(1)(i) through (iii). 1910.140(d)(2) The employer must ensure that:
- On any horizontal lifeline that may become a vertical lifeline, the device used to connect to the horizontal lifeline is capable of locking in both directions on the lifeline. 1910.140(d)(2)(ii)
- Personal fall arrest systems are rigged in such a manner that the employee cannot free fall more than 6 feet (1.8 m) or contact a lower level. A free fall may be more than 6 feet (1.8 m) provided the employer can demonstrate the manufacturer designed the system to allow a free fall of more than 6 feet and tested the system to ensure a maximum arresting force of 1,800 pounds (8 kN) is not exceeded. 1910.140(d)(3)
- Body belts. Body belts are prohibited as part of a personal fall arrest system.
